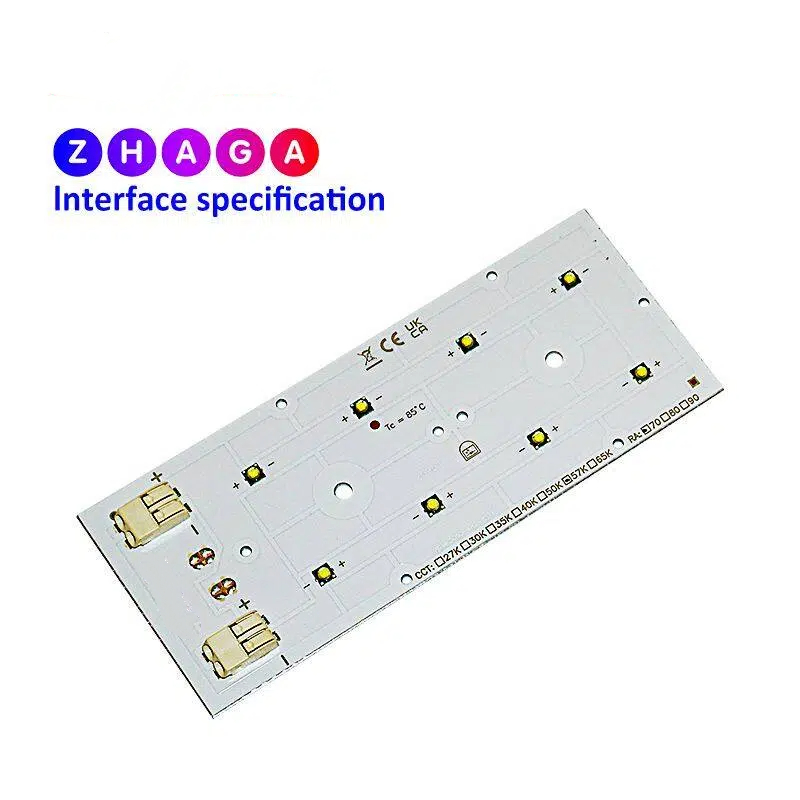

121.4×49.5mm PCB with 2×4 25W 3535 LED Module for DC24V Outdoor Lighting

121.4×49.5mm PCB with 2×4 25W 3535 LED Module for DC24V Outdoor Lighting

_ Module Input Voltage DC24V
_ Module power up to 25W
_ Module Efficacy 156 lm/W at Irated and tp = 25 °C
_ Module dimension 49.5 x 121.4 x 8 mm
_ Colour temperatures: 5700K
_ Colour rendering index Ra: >70
_ Colour accuracy initially: 5 SDCM
_ Beam characteristic: 120°
_ Tp rated: 75 °C
_ Tc: 105 °C
_ Irated Current : 700 mA
_ Imax Current : 1500 mA
_ Huge performance temperature range from -40 … +105 °C
_ Integrated NTC for overtemperature protection
_ Push-in terminals for simple and quick wiring
_ Zhaga Book 15 compliant
_ For use with standard 2×2 lenses
_ Installation of the module together with lens in the luminaire bymeans of an M3 screw
_ Long lifetime up to 100,000 hours
_ 5 years guarantee

Description

Premium 25W 3535 LED Module: Engineering Excellence for Outdoor Illumination

At Tonghang, we specialize in high-quality PCB module customization. This 121.4×49.5mm LED engine is specifically designed for manufacturers seeking durability and high optical output for street lights, tunnel lights, and industrial floodlights.

Core Performance Specifications

Superior Efficiency: Delivers up to 156 lm/W at rated current, significantly reducing energy consumption.
Advanced Thermal Management: Integrated NTC overtemperature protection and a robust design that handles Tc up to 105°C.
Optimized Light Quality: 5700K color temperature with Ra >70 and 5 SDCM color accuracy for consistent, professional lighting results.

Industrial-Grade Reliability

Extreme Resilience: Operates seamlessly from -40°C to +105°C, making it suitable for any climate worldwide.
Long-Term Investment: Rated for a lifetime of up to 100,000 hours and backed by our professional 5-year guarantee.
Fast Integration: Features push-in terminals for quick wiring and M3 screw mounting for easy lens and luminaire assembly.

Standardization & Customization

Zhaga Compliant: Following Zhaga Book 15 standards, ensuring compatibility with standard 2×2 optical lenses.
Custom PCB Solutions: As a dedicated manufacturer, we offer full customization of PCB dimensions, LED layouts, and power configurations to meet your specific project requirements.

Technical Overview Table

Feature	Details
Input Voltage	DC24V
Power Output	25W
Dimensions	49.5 x 121.4 x 8 mm
Beam Angle	120°
Max Current	1500 mA
Compliance	Zhaga Book 15, RoHS
