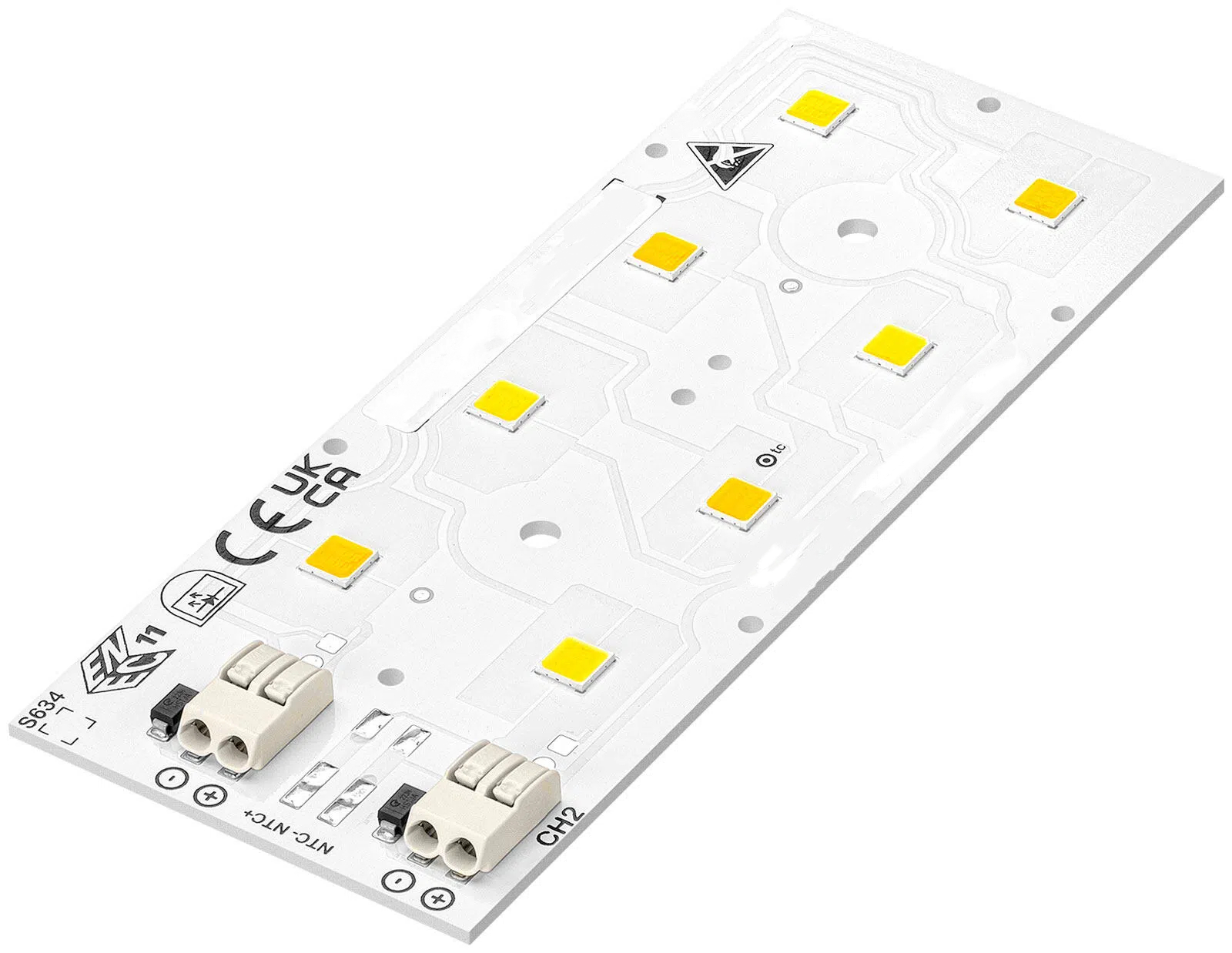

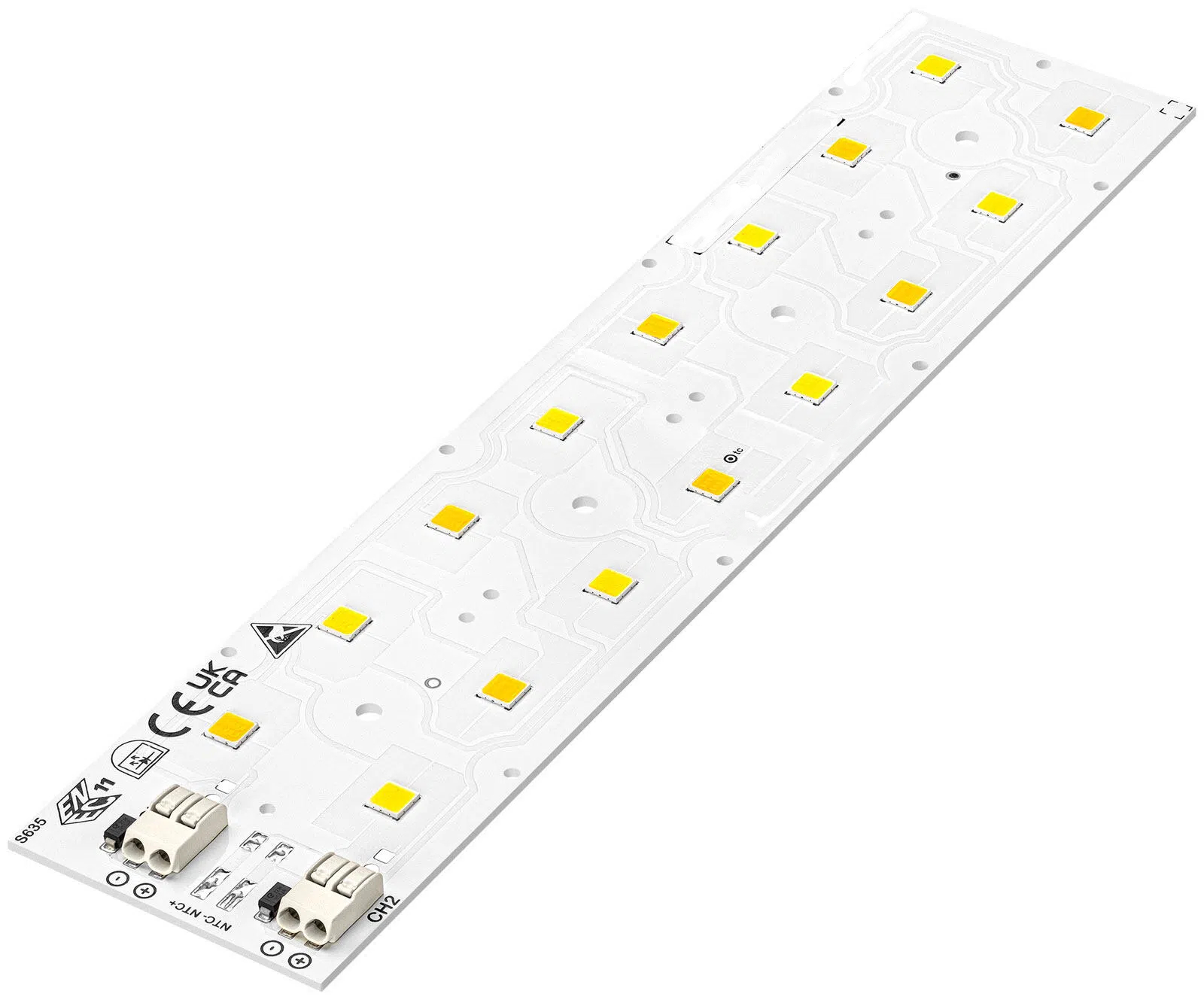

Module RLE 2x4 / 2x8 2xCH HP HE PRE OTD new variant

Module RLE 2×4 / 2×8 2xCH HP HE PRE OTD new variant

• Outdoor adjustable white LED module with 2,200 and 4,000 Kelvin LED packages

• LED module efficiency up to 207 lumens/watt

• Two color rendering indices to meet application requirements: CRI > 70 for high efficiency, CRI > 80 for high color rendering

• Minimal luminous flux error

• Module dimensions 49.5 x 121.4 mm and 49.5 x 223 mm

• Mount the module and lens together in the luminaire using M3 screws

High-efficiency outdoor module

• Suitable for harsh and humid outdoor conditions

• Passed salt spray test (IEC 60068-2-52) and hazardous gas test (GR-1217-CORE)

• Wide temperature range -40… +95°C

• Surge capability (+/- to earth) 6 kV with Tridonic Outdoor LED driver

• Zhaga Book 15 certified

• Suitable for standard 2×2 lenses (e.g., LEDiL STRADA 2×2)

• Push-in port for quick and easy wiring

• HE… High efficiency, NM… Rated modes, HO… High output

• Long service life up to 102,000 hours

• 8-year warranty
