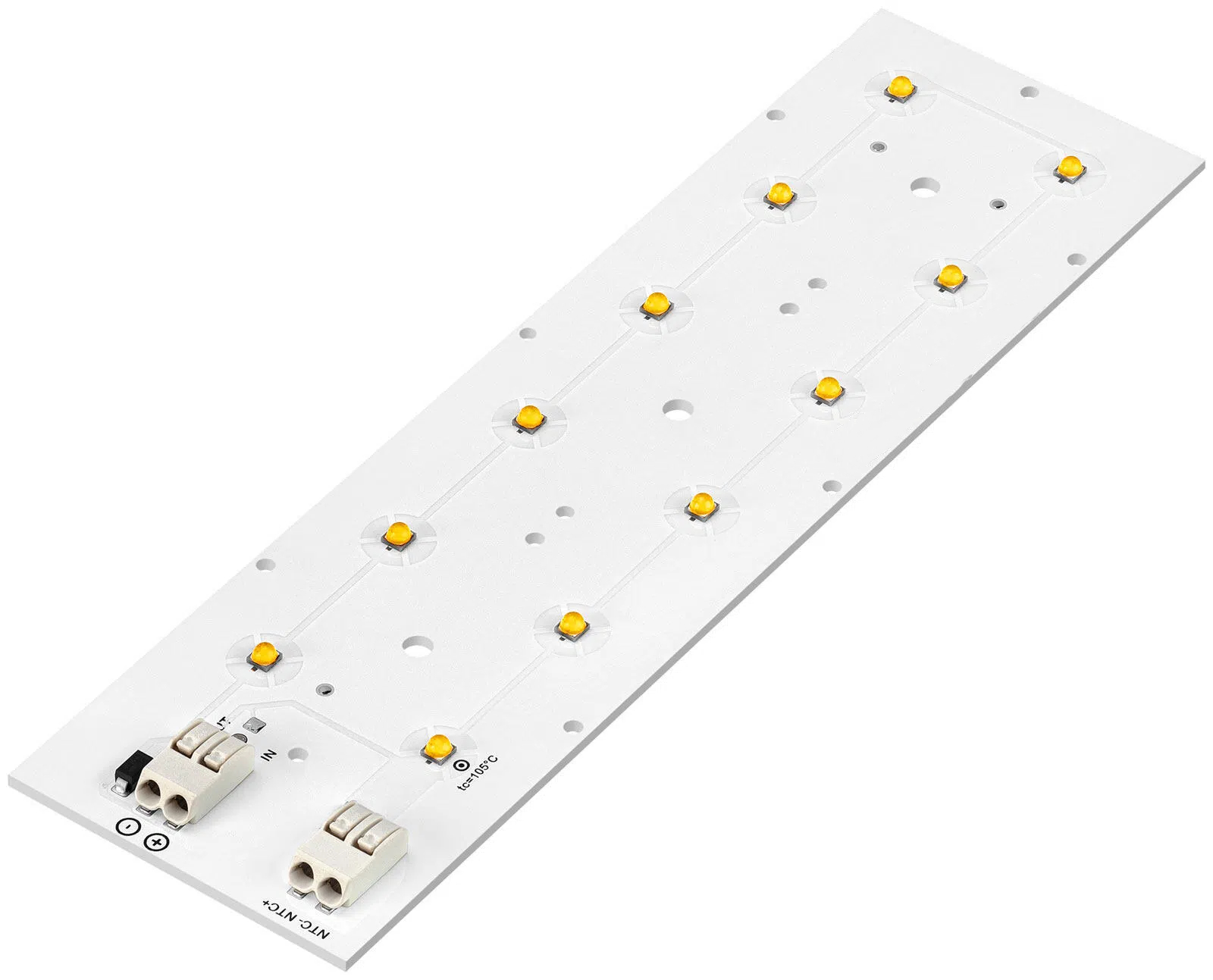

Module RLE 2x4 / 2x6 / 2x8 EXC2 OTD

Module RLE 2×4 / 2×6 / 2×8 EXC2 OTD

• Color temperatures of 2200, 2700, 3000, 4000, 5000, 5700, and 6500 K

• LED module efficiency of 192 lumens/watt at Irated and temperature = 25 °C

• Two color rendering indices to meet application requirements: CRI > 70 for high efficiency, CRI > 80 for high color rendering

• Minor luminous flux error (1)

• Module dimensions of 49.5 x 121.4 mm, 49.5 x 172.2 mm, and 49.5 x 223 mm

• Mount the module with the lens into the luminaire using M3 screws.

• High-efficiency outdoor module

• Suitable for harsh and humid outdoor conditions

• Passed salt spray test (IEC 60068-2-52) and hazardous gas test (GR-1217-CORE)

• Wide temperature range from -40 to +105°C

• Surge tested (+/- to ground) 6 kV using Riga LED driver

• Integrated NTC for over-temperature protection

• Zhaga Book 15 certified

• Suitable for standard 2×2 lenses (e.g., LEDiL STRADA 2×2)

• Push-in port for quick and easy wiring

• HE … High efficiency, NM … Rated mode, HO … High output

• Long service life up to 150,000 hours

• 8-year warranty
