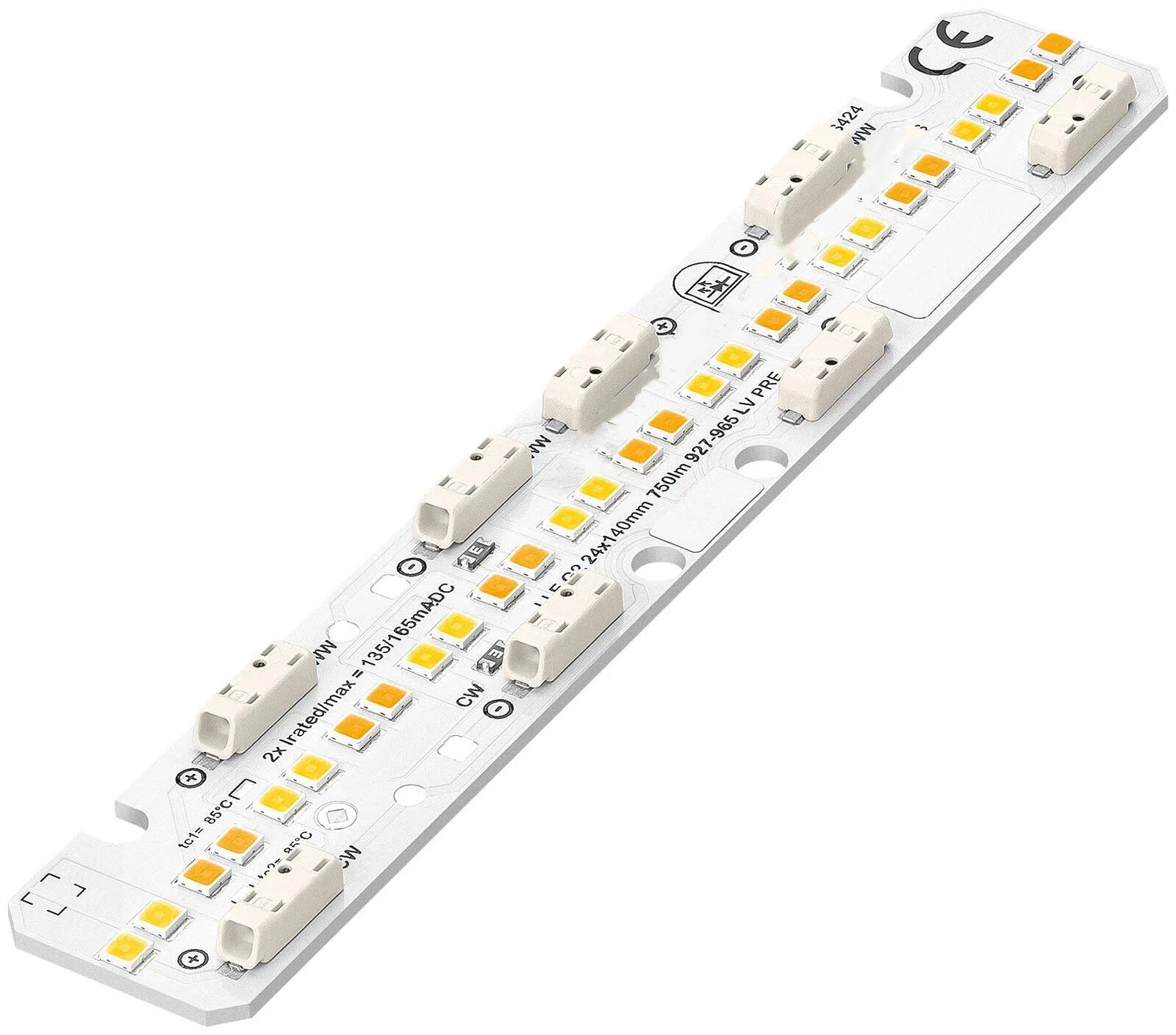

Module LLE G2 750lm premium

Optical Properties

• Linearly adjustable white LED modules with 2,700 and 6,500 K SMT kits
• 2,937 lumens of usable luminous flux at Irated temperature = 25 °C
• 123 lumens/watt LED module efficiency at Irated temperature = 25 °C
• High color rendering index (CRI > 90)
• Minimal color difference (MacAdam 3)
• Uniform luminous flux

Mechanical Properties

• Module sizes: 24 x 140 mm, 24 x 280 mm, and 24 x 560 mm (ZHAGA compliant)
• Easy installation (e.g., ACL push-fit)
Ideal for linear and panel lights
• Best solution for tunable white applications when paired with LCA PRE DT8 or 2-channel slim LED drivers
• SELV modules – each module has a forward voltage of <60 volts
• Equipped with connection terminals for easy and quick connection between modules
• Excellent thermal management
• Up to 50,000 hours of extended lifespan
• 5-year warranty
