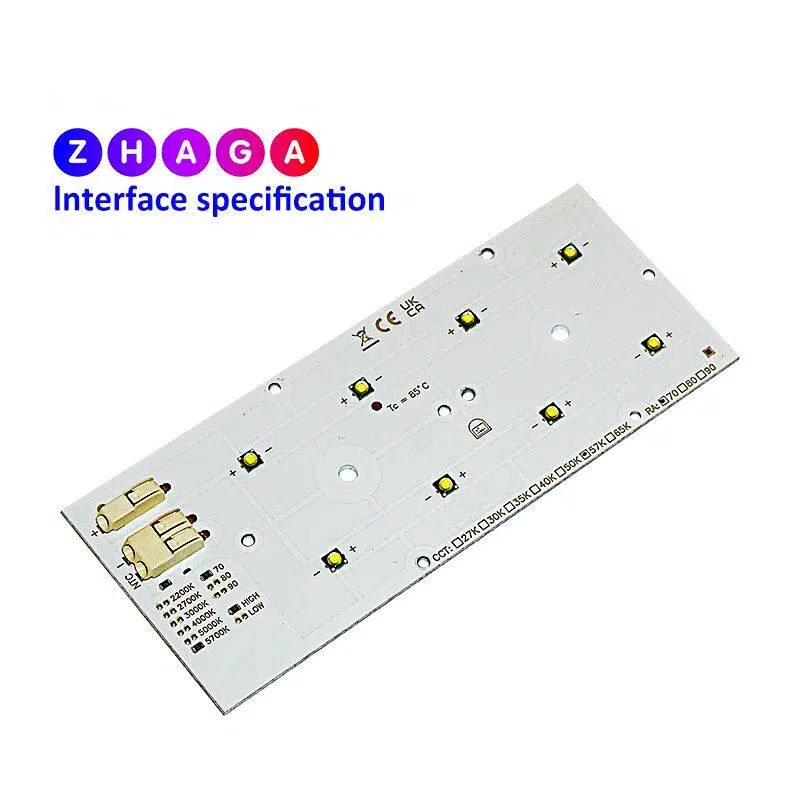

_ Module Input Voltage DC24V
_ Module power up to 25W
_ Module Efficacy 156 lm/W at Irated and tp = 25 °C
_ Module dimension 49.5 x 121.4 x 8 mm
_ Colour temperatures: 5700K
_ Colour rendering index Ra: >70
_ Colour accuracy initially: 5 SDCM
_ Beam characteristic: 120°
_ Tp rated: 75 °C
_ Tc: 105 °C
_ Irated Current : 700 mA
_ Imax Current : 1500 mA
_ Huge performance temperature range from -40 … +105 °C
_ Integrated NTC for overtemperature protection
_ Push-in terminals for simple and quick wiring
_ Zhaga Book 15 compliant
_ For use with standard 2×2 lenses
_ Installation of the module together with lens in the luminaire bymeans of an M3 screw
_ Long lifetime up to 100,000 hours
_ 5 years guarantee
